Product Details
Though BlowHard fans are designed to be small and compact for ease of maneuverability and operation, our fans are equally created to deliver high performance, and the Quickee shows off this great feat in aces!
In 2019 the Quickee changed positive pressure ventilation with the introduction of a new type of airstream designed by BlowHard called High-Flow Jet. This technology expands the jet when it flows out, increasing entrainment to effectively seal the door, and with our big battery, also keeps energy in the airstream to quickly pressurize the structure. This gives the fan the ability to perform as though it is much larger than it actually is. High-Flow Jet Tec also helps fighting in less-than-ideal situations because it allows for a shorter setback from the structure than other fans to get the job done.

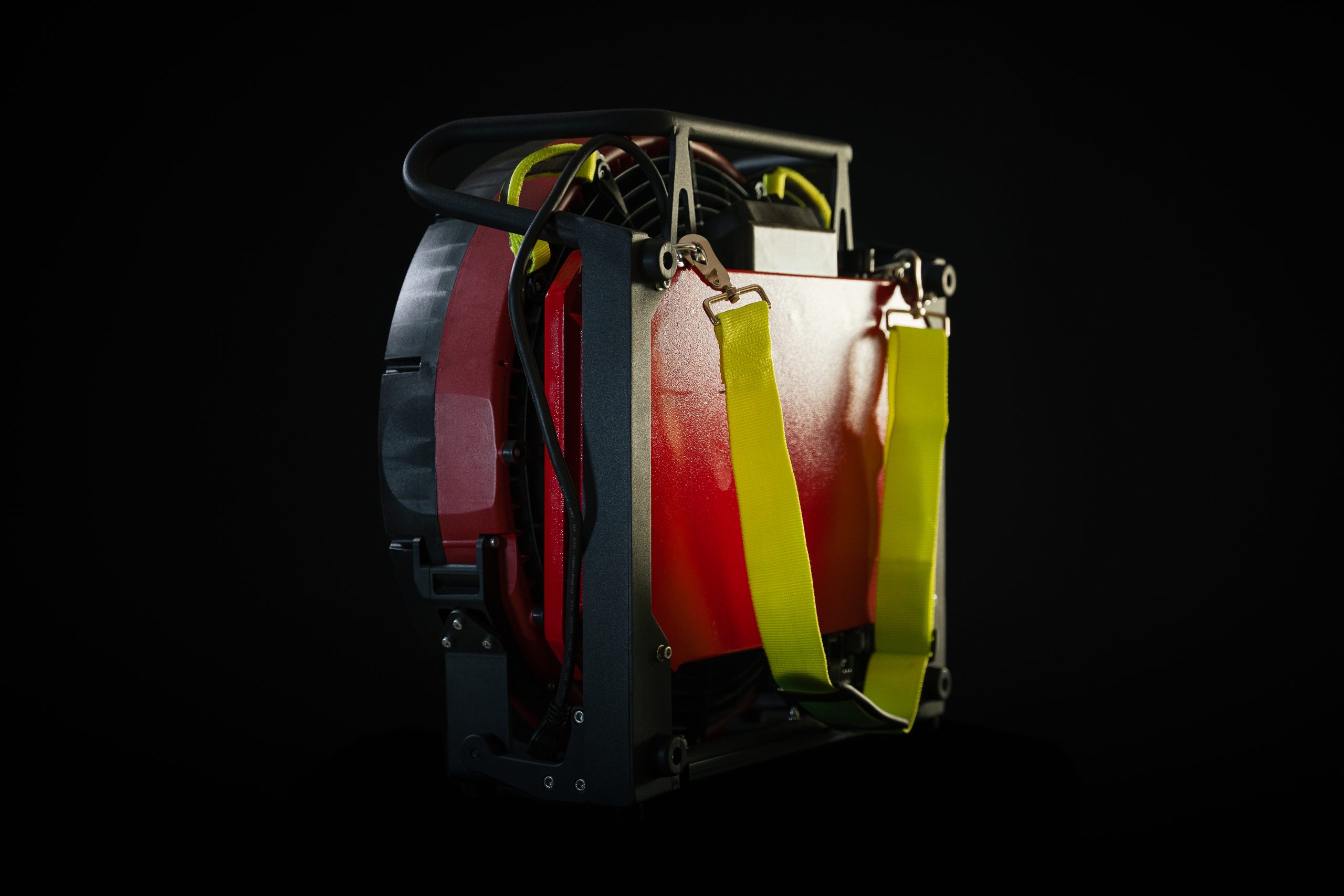

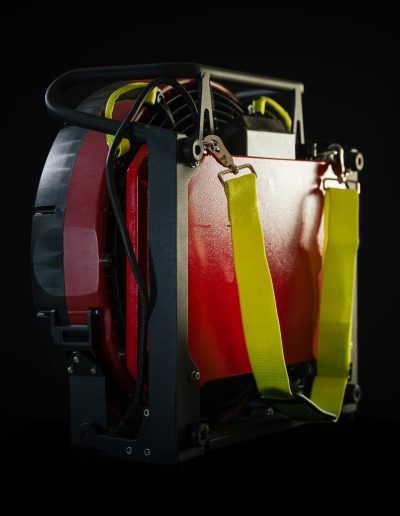

The Quickee takes up little space on the apparatus, is light for easy maneuverability, and is quick to set up. With this fan, you’ll be in and out before you know it!
Specifications:
| Max CFM | 11,400 AMCA equivalent (19,369 m3/h) |
| Open Air Flow | 24,000 CFM (40,820 m3/h) |
| Runtime | 40 + minutes at 11,400 CFM (19,369 m3/h). 4+ hours at 6,500 CFM (11,05 m3/h) |
| High-Flow Expansion Jet | Yes |
| Ingress Protection | IP-67 |
| Sound | 87 dB @ 10 ft (3m) |

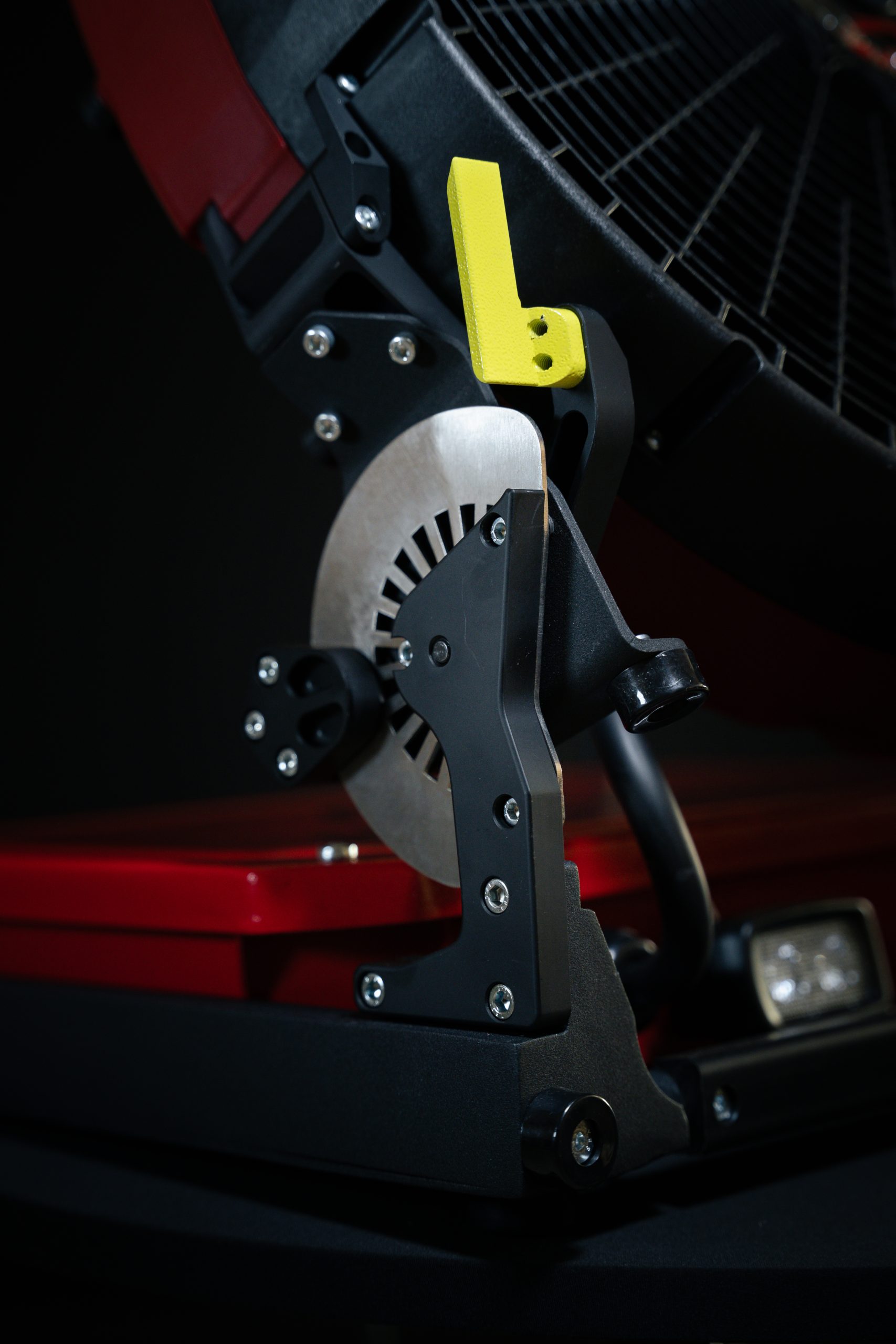

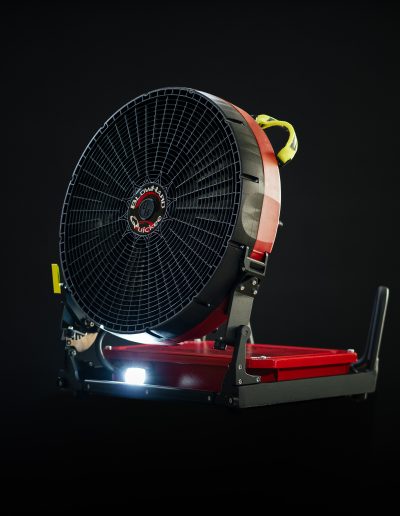

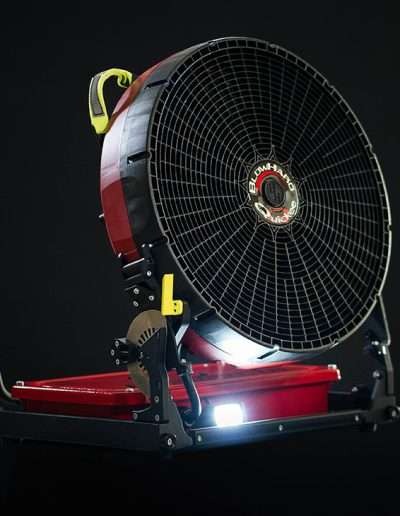

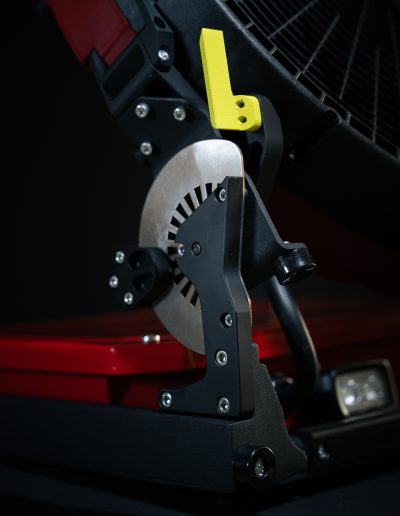

| Tilt | Ergo Fold 0 – 180 degrees |

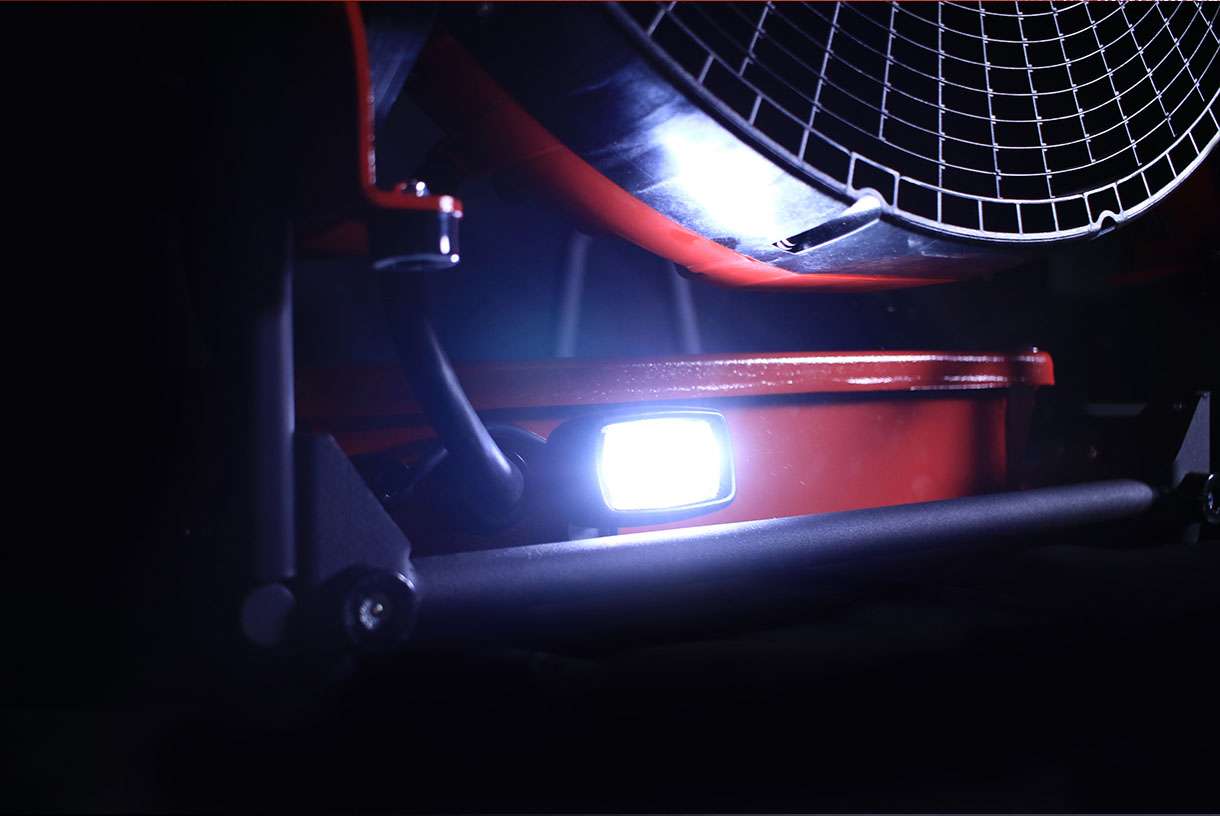

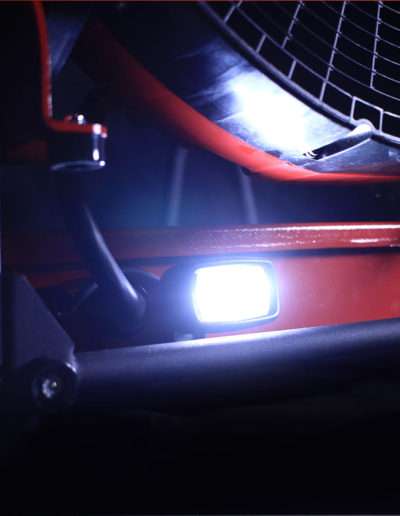

| Lighting | Adjustable Angle Path Lighting LED |
| Warranty | 2- year Full Warranty, plus 3-5 Year Sliding Warranty |
Measurements |
|

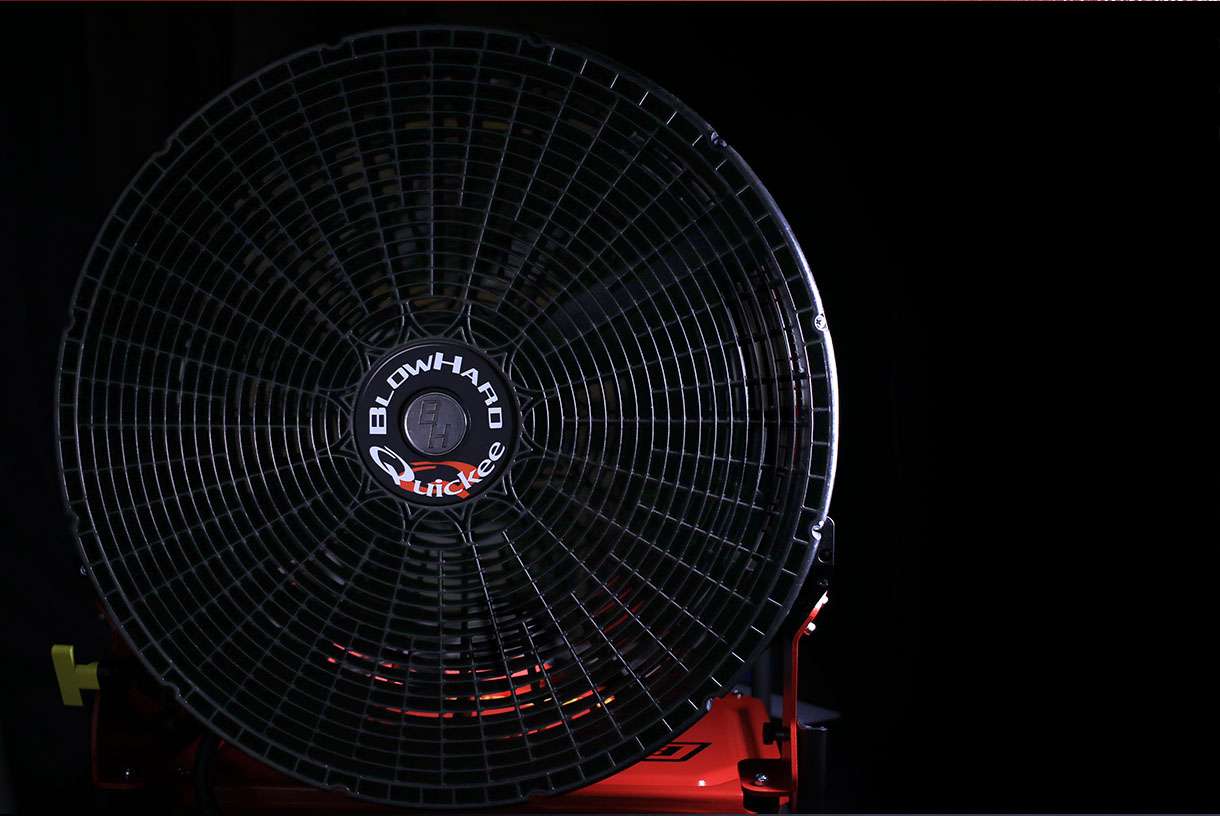

| Blade Size | 20” (508mm) |
| Size | 21”x21”x10 ¼” (534mm x 534mm x 260mm) |
| Weight | 46 lbs (21kg) |
Battery & Operation |
|
| Battery | Li-Ion |
| Run Time | 40+ minutes at 11,400 CFM (19,369 m3/h), 4+ hours at 6,500 CFM (11,045 m3/h) |
| Charge Time | 0% – 90% in 1 hour 45 minutes |
| Complete Charge Time | Complete charge time-3 hours. No memory |
| Battery Cycle Life | Up to 500 full discharges, industry standard |
| Dual-Powered | Run on battery or ac, seamless automatic switching |
| Operator Interface | Yes. Displays Battery Level Indicator |
Misting Ring
The Misting Ring is universal to all BlowHard Fans. Having a fast and easy magnetic set up and 8 nozzles blowing out cool mist, it is perfect for quick firefighter and civilian heat recovery.
Specifications
| Size | Weight | Nozzles | Flow Rate | Total Flow Rate |
| Ring Diameter 13 in | 1 kg / 2.3 lbs | 8 | 0.09 L/min per nozzle | 0.75 liters/min at 42.5 PSI / 3 bar |
| Ring + Connector Length: 17.5 in |
Key Features: The wide ring diameter places the nozzles in the airstream for optimal mist distribution.
Ducting
BlowHard Ducting is fan specific and for the Quickee. It comes in 2 diameters. Fitting snug around the shroud, the ducting makes it quick and easy to get fresh air into small, difficult to reach places. With its condensed, integrated case, deployment and pack up fast and easy!
Specifications
| Diameter | Length Deployed | Weight |
| 12" | 9.5 m / 31 ft | 10.8 kg / 24 lbs |
| 16" | 9.5 m / 31 ft | 12 kg / 36 lbs |
Key Features: With reinforced PVC fabric of 650gsm and 55mm thick, this ducting is highly durable and abrasion resistant. The end coupling rings allow you to attach multiple units together to reach and even longer distance.
High-Flow Mister
The High-Flow Mister is universal to all BlowHard Fans. Super popular in Europe, the High-Flow Mister puts out a powerful 60L per minute wall of water to create a protective barrier between buildings to stop fire from jumping and spreading.
Specifications
| Nozzle + Connector Length | Hose Length | Weight | Nozzles | Flow Rate | Total Flow Rate |
| 8 in | 30 in | 2 lbs / 0.90 kg | 9 | 7.1 L/min per nozzle | 60 L/min at 100 PSI / 7 bar |
Key Features: The High-Flow Mister is universal to all BlowHard fans and is magnetic for a quick and easy set-up. It has an On/Off ball valve and comes with a flexible 30 in hose. With a 5/8 in / 16mm ID adaptable fitting, you can use your current system.
